Heavy duty barn door hardware is for two situations: doors that exceed the weight capacity of standard hardware, and doors that are too thick for standard hangers to accommodate. Everything in this collection is Goldberg Brothers only — there is no Quick Ship line at this tier. If your project calls for a lighter door and budget is the primary concern, our standard sliding hardware includes a Quick Ship option.
Two reasons you need heavy duty hardware — and you only need one of them to be true:
-
Your door weighs more than 200 lbs. Standard J-strap hangers are rated to 200 lbs. Heavy duty hangers start where standard hardware leaves off.
-
Your door is thicker than 1-3/4 in. Standard hardware accommodates door thicknesses between 1-3/8 in and 1-3/4 in. Heavy duty hardware extends that range up to 2-1/4 in. If your door is a thick solid slab, reclaimed timber, or a commercial-grade panel, measure the thickness before ordering anything.
Capacity depends on the hanger style: the strap and wheel hangers are rated to 400 lbs, the Horseshoe reaches 600 lbs on steel wheels (its highest-capacity configuration), and the two top-mount styles are rated to 100 lbs. Match the hanger to your door's weight using the table below.
Hanger styles and capacity
| Hanger style |
Capacity |
Ceiling clearance above door |
Notes |

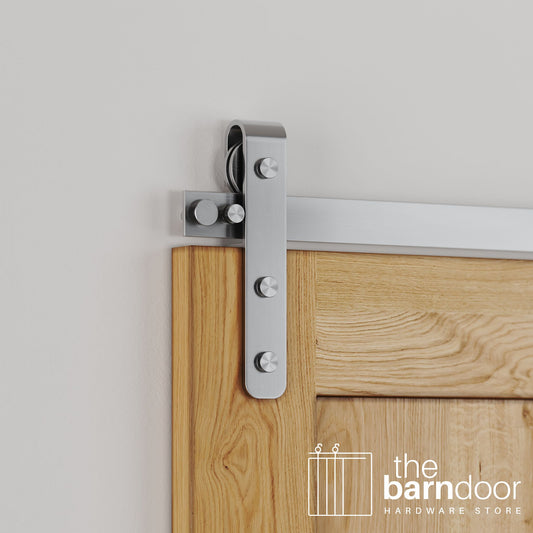

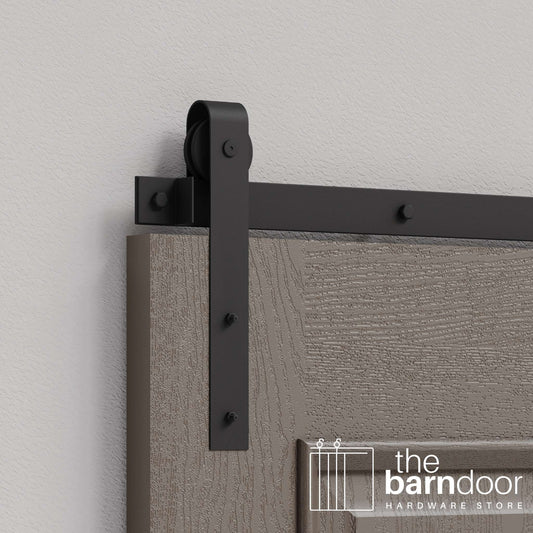

| J-strap |
400 lbs |
5-1/2 in |
Most popular heavy duty style — curved arm over roller, all 17 finishes |

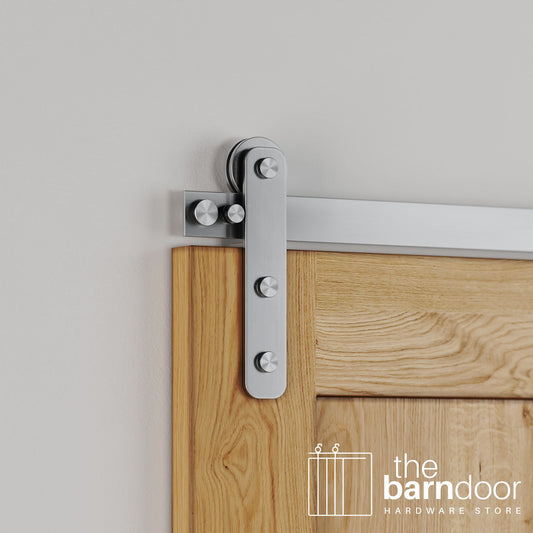

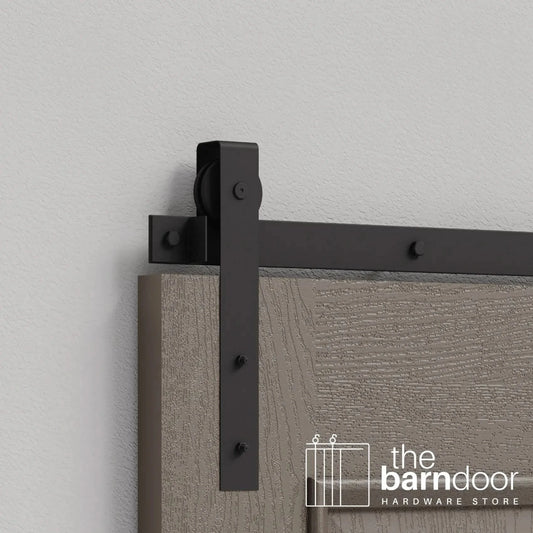

| Flat top strap |
400 lbs |
5-1/2 in |
Flat vertical bar profile — cleaner, more minimal than J-strap |

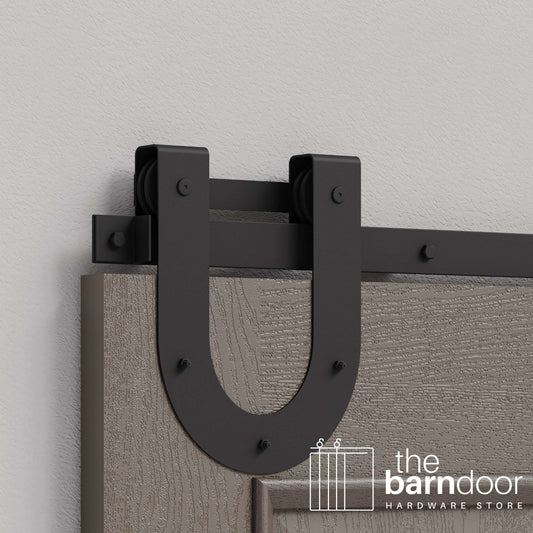

| Horseshoe |
600 lbs (400 lbs with Delrin wheel upgrade) |
5-1/2 in |
Highest capacity in the lineup — multi-wheel assembly in a horseshoe frame |

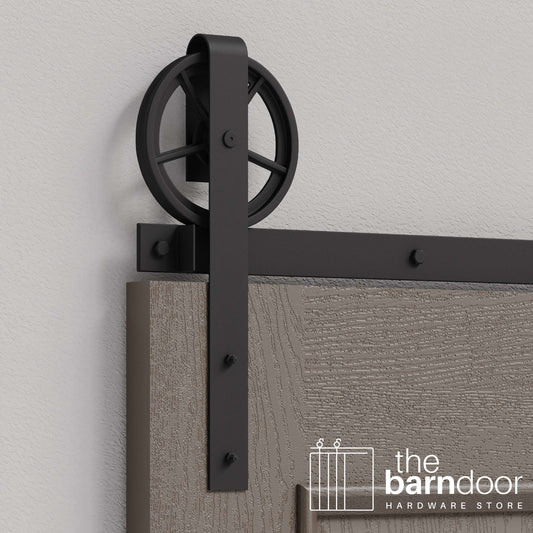

| Wagon wheel |
400 lbs |
9 in |
Decorative spoke wheel — the most visually distinctive hanger in the lineup; requires 9 in clearance above opening |

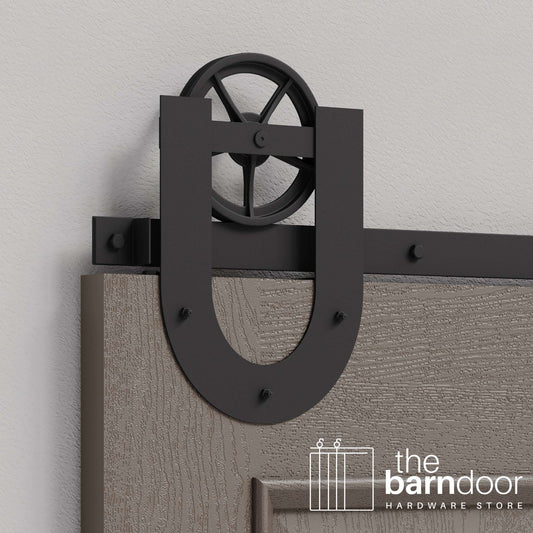

| Horseshoe wagon wheel |
400 lbs |
9 in |
Horseshoe frame with spoke wheel — combines the horseshoe aesthetic with the wagon wheel look |

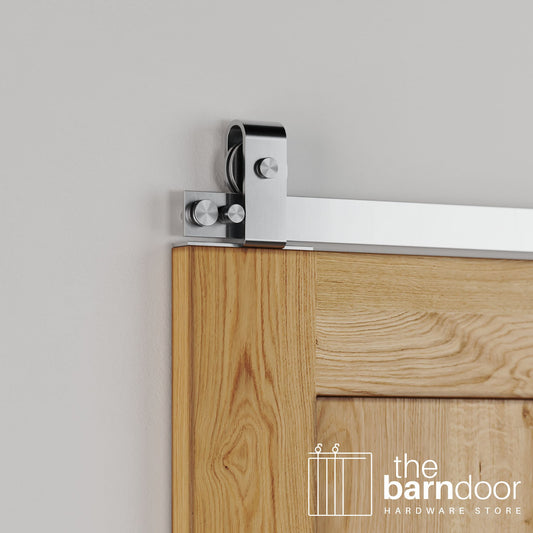

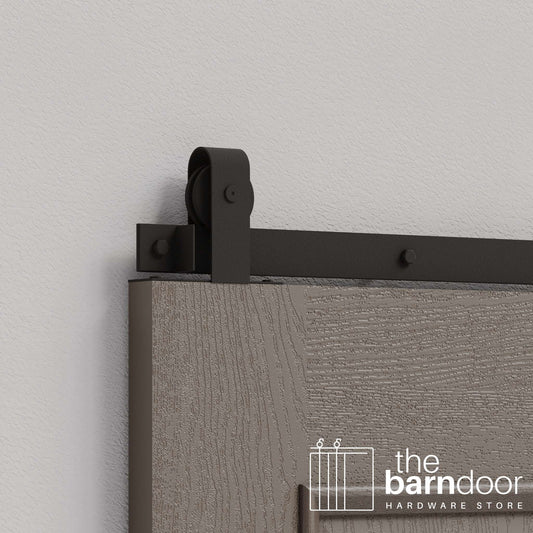

| J top mount |
100 lbs |
5-1/2 in |
Attaches to top edge of door — no visible hardware on door face |

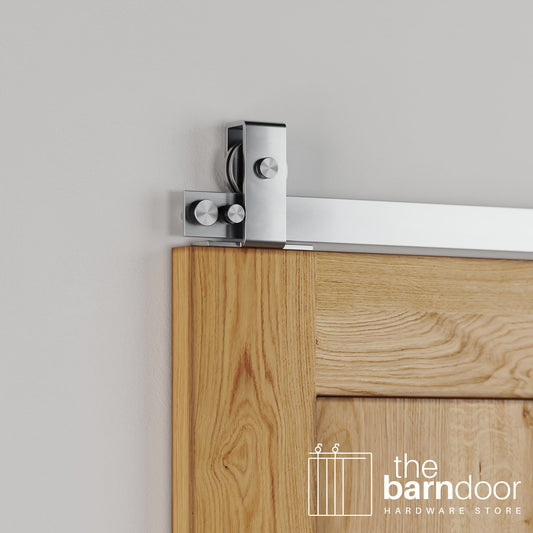

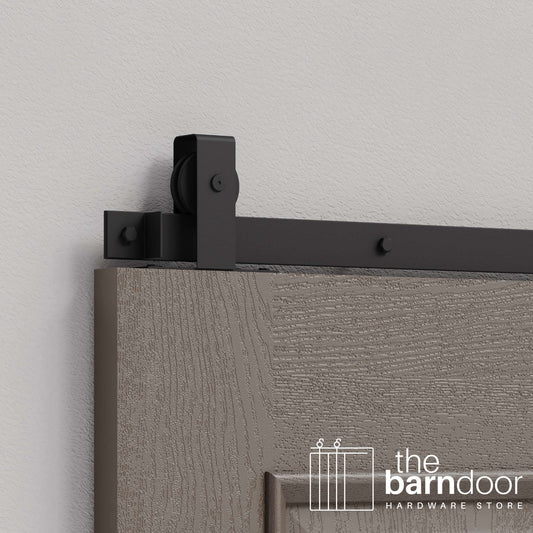

| Flat top top mount |
100 lbs |
5-1/2 in |
Flat profile top mount — most minimal heavy duty option |
All heavy duty hardware is available in all 17 Goldberg Brothers finish colors. For a deeper breakdown of each hanger style and how it reads in a space, see our barn style doors guide.
How heavy duty hardware differs from standard
Beyond the hanger ratings, two structural differences set heavy duty hardware apart from the standard line.
Wider track
Heavy duty kits use a 2-inch wide track, compared to the 1-1/2-inch track on standard kits. The wider track provides a more stable rolling surface and is built to handle the lateral forces a heavy door generates in use. If you're replacing hardware on an existing install, measure your current track before ordering — switching track widths means replacing the full track assembly.
Steel wheels
Heavy duty kits use steel wheels by default, color-matched to your hardware finish. Steel wheels are durable under sustained heavy use and well-suited to the load demands of heavy doors. Delrin wheels are available as an upgrade — they run significantly quieter than steel, which is worth considering for bedroom doors or any install where noise matters. Two tradeoffs: Delrin wheels are only available in black regardless of your hardware finish, and they're only suitable for doors under 200 lbs. If your door is over 200 lbs, stick with steel — Delrin isn't rated for that load. If finish consistency across the full kit matters to your project, stick with steel.
Finish options
Heavy duty kits are available in all 17 finishes — the full range, compared to the more limited selection on standard sliding kits. Economy, standard, upgrade, and designer colors are all available. If a specific finish drove you to look beyond our standard collection, you'll find it here.
See individual products for finish availability by hanger style. If you're trying to match an existing finish and aren't sure which option corresponds to your current hardware, email us a photo and we'll confirm before you order.
Soft close and track length
Soft close
Soft close is available as an add-on for kits in this collection and can be retrofitted after the fact if needed. On a heavy door, soft close does more than prevent slamming — it reduces the impact force on the track stops and wall at the end of travel, which matters more the heavier the door. Worth adding on any heavy door in a high-traffic or shared space.
Track length
The same 2x rule applies: track length must be at least twice the door width for full clearance. A 36-inch door needs a minimum 72-inch track. For the full formula table and non-standard length guidance, see our track length guide. For the complete pre-order checklist, see our barn door measuring guide.
For doors wider than 60 in, an additional roller is strongly recommended to prevent warpage over time. See our extra rollers guide.
Questions about which hanger fits your door weight or whether heavy duty is the right tier? Email us at info@thebarndoorhardwarestore.com with your door dimensions, weight estimate, and finish preference — we'll confirm before anything ships. Available 7 days a week.
